VERTICAL CNC MACHINES

MACHINES FOR PROTYPE TO PRODUCTION

VERTICAL MACHINING

Vertical machining centers easily accommodate longer parts, have open visibility for optimum productivity, and are best for quick milling jobs. Innovative has the ability to utilize our vertical CNC machining centers for prototype or production jobs. We have the skilled machinists required to bring your next project from concept to completion. With over 10 vertical CNC machining centers, we have the capacity to meet any project needs. With our largest travel window up to 144”, this allows us to be cost effective with larger parts, eliminating the need to use a boring bar machine.

With Mazatrol, our machinists have the added ability to program at their vertical machining centers. Thus, allowing better control of lead times and best utilization of machinist’s to get your projects finished. We are always investing in our facility and employees to give them the tools they need to get the job done right.

Below is our list of CNC Vertical Machining Centers.

VERTICAL CNC MACHINING CENTERS

Mazak VTC-250D

  • TRAVEL: X=69.3″ Y=25″ Z=25.9″
  • MAZATROL SMOOTHG
  • 24 TOOL CAPACITY
  • 50 TAPER SPINDLE
  • MAX WEIGHT: 3,000 LBS

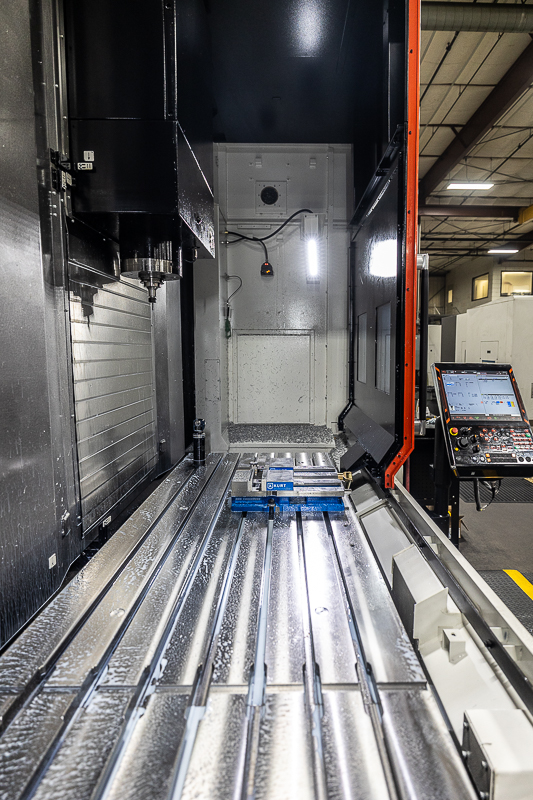

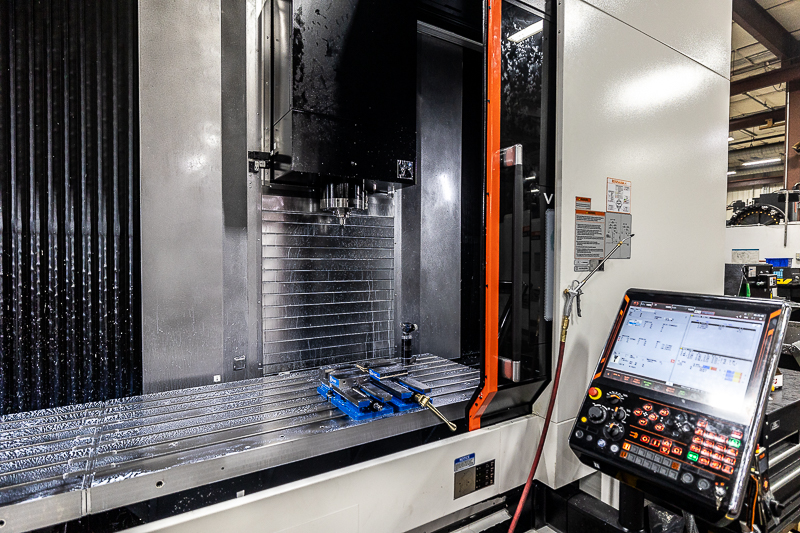

Mazak VTC-805G

  • Travel: x: 118.” Y: 31.5″ Z:28.3″
  • MAZATROL SMOOTHG
  • 40 Tool Magazine
  • 50 TAPER SPINDLE
  • MAX WEIGHT: 4,600 LBS

Mazak VTC 200G 4-Axis VMC

  • TRAVEL: X=144″ Y=20″ Z=26″ WITH ROTARY (A) AXIS
  • FUSION 640M CONVERSATIONAL CONTROL
  • 48 TOOL MAGAZINE
  • MAX WEIGHT: 4,600 LBS

SMART SV-2

  • Travel: x: 31.4″ Y: 19.6″ Z: 19.6″
  • Sumitomo Rotary Indexer
  • Fanuc Control
  • 30 Tool Magazine
  • Max Weight: 1,320

Mazak VTC-300C VMC (2)

  • TRAVEL: X=65.25″ Y=30″ Z=26″ WITH ROTARY (A) AXIS
  • MAZATROL 640MN CONTROL
  • 24 TOOL MAGAZINE
  • MAX WEIGHT: 3,300 LBS

Mazak Nexus 510C-II

  • TRAVEL: X=41.3″ Y=20″ Z=20″
  • MAZATROL CONTROL
  • 30 TOOL MAGAZINE
  • MAX WEIGHT: 2,640 LBS

Trak DPM V7

  • TRAVEL: X=60″ Y=23″ Z=20.5″

Sigma SDV 3219 CMC

  • TRAVEL: X=125″ Y=75″ Z=39″
  • FANUC 18I CONTROL
  • 40 TOOL MAGAZINE
  • MAX WEIGHT: 22,000 LBS
PROVIDING WORLD-CLASS MACHINING AND FABRICATIONS SINCE 1995
